Solving Navien Error Code 515: A Westford, MA Guide

Navien error code 515 is an abnormal PCB or control-operation fault family whose full suffix helps narrow the diagnostic branch. In this documented Massachusetts case, code 003 appeared first, maintenance followed a reported ten-year descaling gap, and code 515 appeared later while the unit attempted ignition. The notes then identified moisture near gas-valve wiring and a broken harness conductor, but they do not document a completed repair or prove that one event caused the next.

This is a Westford, MA, guide, not a Westford case claim. The source does not preserve the service town or date. It records the model as “NPE-182S,” but the appliance rating plate must be checked because the exact Navien model controls the service procedure. The diagnostic lesson remains the same: preserve the complete Navien error code 515 display, keep the chronology, and test the wiring branch before replacing a PCB or gas valve.

Q: What exactly is Navien Error Code 515, and why should I be concerned?

Navien’s legacy NPE user manual labels E515 “Abnormal operation: PCB.” That is broader than saying the main control board cannot communicate with the gas valve. Model generation, firmware, and the complete suffix determine whether diagnosis goes toward wiring, a control output or input, a fan-voltage branch, a gas-controller connection, or another monitored circuit.

Navien error code 515 does not prove that the PCB, gas valve, fan, or harness has failed. It tells me to preserve the full display, verify the exact model and service literature, and follow the model-specific branch with electrical and operating measurements. Replacing major components from the three-digit code alone can miss an open conductor, damaged connector, moisture source, or another control condition.

A homeowner can photograph the user-visible display and note whether hot water was running when the code appeared. Do not enter a service menu, remove the cabinet, test wiring, jumper a control, or repeatedly reset the unit. If one user-level reset is allowed by the exact homeowner manual, it should be attempted only when there is no gas odor or suspected fuel leak, no sounding CO alarm or possible exposure symptoms, no escaping flame, smoke, or fire, no visible moisture on or around the appliance or vent connection, and no damaged venting; if the code returns, leave the unit off.

How Error 003 Appeared Before Navien Error Code 515

The source record shows E003 first and E515 later. On applicable Navien NPE literature, E003 means ignition failure; flame loss is a different code, commonly E012. The earlier ignition failure and later control fault can share an operating sequence, but chronology does not prove that E003 changed into E515.

Between those codes, the unit reportedly received maintenance and descaling after about ten years without that water-side service. Afterward, the unit attempted ignition, displayed Navien error code 515, and showed 120°F following a reset. That display was a controller status or setpoint indication, not proof of delivered water temperature, a cleared fault, or a successful repair.

The later inspection notes describe an exhaust-collar leak, moisture near gas-valve wiring, and a broken conductor in the harness branch. A damaged conductor could interfere with ignition and control monitoring, which makes the shared wiring path relevant. The causal sequence still requires the exact model, suffix, wiring tests, vent and moisture-source correction, and controlled operation before and after the proposed repair.

Q: What causes Error Code 515 to appear on Navien water heaters?

Navien error code 515 is a control-monitoring family, so there is no single universal cause. Depending on the exact model and suffix, diagnosis can involve PCB circuits, harnesses and connectors, gas-controller wiring, fan-voltage monitoring, dual-venturi wiring, power, grounding, moisture damage, or another input the control expects to see. The manual and manufacturer procedure for the rating-plate model decide the branch.

In this case, the notes record subcode 4. A legacy service chart routes subcodes 3 and 4 toward the wire connection between the gas controller and main PCB, which makes the observed broken harness conductor a plausible finding. The record does not preserve meter readings, connector tests, PCB output, gas-valve operation, or final commissioning, so subcode 4 should not be presented as proof that the harness alone completed the diagnosis.

The reported exhaust-collar leak and nearby moisture also required correction. Generic room ventilation is not the repair for a leaking collar or vent connection. I would identify and correct the moisture or combustion-product source, inspect every affected connector and component, then test the control circuit and appliance under the exact Navien procedure.

The 10-Year Descaling Gap and Navien Error Code 515

The source says the tankless unit had not been descaled for about ten years. That is a significant water-side maintenance gap, but it is not evidence that descaling caused or could cure Navien error code 515. Descaling addresses mineral accumulation inside the water passages; it does not repair a broken wire, exhaust-collar leak, PCB circuit, gas-valve control, damaged connector, or vent condition.

Annual service is a practical review point for many tankless units, but it is not a universal descaling mandate. The exact model instructions, usage, recirculation, service history, property-specific water test, and scale found during service determine whether descaling is due.

No hardness, pH, iron, TDS, alkalinity, or scale quantity is preserved in this case record. I will not assign hard water to a Massachusetts town or claim the flush disturbed the wire. The ten-year gap belongs in the maintenance history, while the electrical and moisture evidence belongs in the Navien error code 515 diagnosis.

Q: How do you fix Error Code 515, and what are my options?

The repair follows the confirmed branch rather than the price or size of a suspected component. In the documented case, the first possibilities included the main PCB and gas valve, but closer inspection found a broken conductor in the gas-controller harness path. The proposed next step became replacement of the correct harness after the moisture source and surrounding damage were assessed.

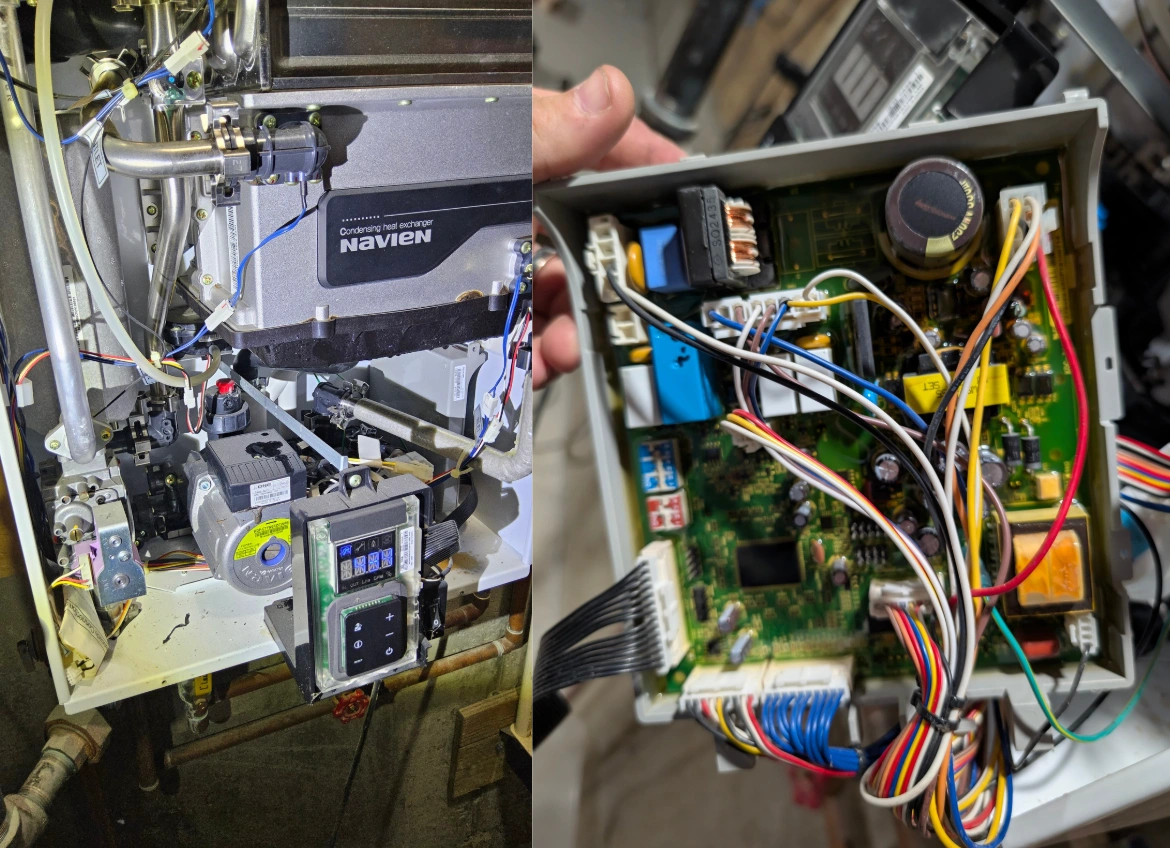

The source does not document the exact part number, harness purchase, installed repair, corrected exhaust collar, cleared Navien error code 515, restored hot water, combustion results, invoice, or long-term outcome. The photograph is part of the case record, but it does not establish that the proposed work was completed.

Before normal use, I would secure the correct harness and connectors, correct the collar or vent source, inspect the PCB and gas-valve circuit for collateral damage, and follow the model’s return-to-service sequence. That can include gas, water, condensate, and vent leak checks; ignition and flame-proving operation; safeties; applicable gas and combustion measurements; hot-water operation across required firing conditions; and confirmation that the full code does not return.

An isolated, available harness with a correctable moisture source can support repair. Replacement planning deserves discussion when damage extends across major components, critical parts are unavailable, venting or connected work requires major correction, repeated faults undermine value, or the unit no longer fits the home’s demand. The tankless-water-heater guide explains those broader inputs without turning E515 into an automatic replacement recommendation.

Why NSS Certification Matters for Navien Error Code 515

Jeneral Plumbing is owner-operated by a Licensed Master Plumber (MA #9628831-PL-M) with 20+ years in the trade, including 7 years with a gas utility. I am factory trained by Navien and Navien Service Specialist (NSS) certified. That credential supports model-specific code interpretation, controlled diagnosis, manufacturer documentation, and commissioning; it does not determine warranty eligibility or make Navien’s claim decision.

For Navien error code 515, the value is knowing that the three-digit family is only the start. I preserve the suffix, use the correct literature for the exact unit, and separate harness continuity, connector condition, moisture, PCB control, gas-controller wiring, and operating evidence before authorizing parts.

Q: How can I prevent Error Code 515 from happening in the future?

No maintenance plan can guarantee that a wire, connector, PCB, fan circuit, gas controller, or seal will never fail. Scheduled inspection can document error history, visible moisture, vent and collar condition, condensate drainage, connectors, inlet filtration, water-side scale, and completed corrections before the history is lost. The service-plan overview can support a consistent record, while exact tankless scope is confirmed for the installed unit.

Descaling remains water-side maintenance, not electrical-fault prevention. Correcting a visible moisture source matters because water around control wiring requires investigation, but the presence of moisture does not identify every damaged component. If you see moisture near the cabinet or vent connection, keep the cover closed, stop repeated resets, and arrange diagnosis rather than touching the wiring.

If there is gas odor or a suspected fuel leak, everyone must leave immediately. From outside, call 911 and, as applicable, the gas utility or propane provider; do not plug in or unplug anything, and do not operate lights, switches, phones, appliances, windows, shutoffs, or flames inside. Stay out until officials clear the property. Carbon monoxide has no smell, so a sounding CO alarm, possible exposure symptoms, escaping flame, smoke, or fire also means leaving, calling 911 from outside, and staying out until officials clear the property.

Final Thoughts: Why Professional Diagnosis Matters

Navien error code 515 is a good example of why diagnosis must precede parts. The case moved from an ignition-failure code to a control-operation code, then narrowed toward a moisture-affected wiring branch. It did not prove that the PCB or gas valve needed replacement, and it does not document that a new harness completed the repair.

A Navien error code 515 repair handoff should explain the full code, measured findings, moisture and vent correction, affected wiring or components, warranty status, approved repair scope, and return-to-service results. Navien warranty eligibility depends on the exact model, application, installation, registration or documentation, maintenance, and current terms; part coverage does not automatically include diagnosis, labor, access, shipping, vent correction, or connected damage.

Frequently Asked Questions

What does Navien error code 515 mean?

Navien error code 515 is an abnormal PCB or control-operation family on applicable models. The complete suffix and exact service literature narrow the circuit or condition to test. It does not universally mean that the PCB cannot communicate with the gas valve. Record the entire display rather than ordering a part from the three-digit code.

What does Navien 515-09 mean?

A legacy service chart routes subcode 9 toward a fan-voltage branch, but model and firmware matter. This documented case reports subcode 4, not 515-09. Do not merge the two or use a generic list as a repair instruction. Preserve the suffix and have the exact unit tested under its service procedure.

Can I reset Navien error code 515?

Use one user-level reset only if the exact homeowner manual permits it and there is no gas odor or suspected fuel leak, sounding CO alarm or possible symptoms, escaping flame, smoke, fire, visible moisture on or around the appliance or vent connection, or damaged venting. If Navien error code 515 returns, leave the unit off and preserve the display. Do not enter service menus, open the cabinet, reconnect wires, test voltage, or bypass a control. For gas odor or a suspected leak, leave, call 911 and the applicable fuel provider from outside, operate nothing inside, and stay out until officials clear the property; for a CO alarm or possible symptoms, escaping flame, smoke, or fire, leave, call 911 from outside, and likewise stay out until officials clear the property.

Did the ten-year descaling gap cause Navien error code 515?

The record does not prove that it did. A ten-year gap is relevant to water-side mineral scale and service history, while E515 in this case narrowed toward a moisture-affected wiring branch. Descaling does not repair an exhaust-collar leak, broken conductor, PCB circuit, or gas-controller connection. The exact model instructions, measured water conditions, usage, recirculation, service history, and observed scale should determine whether descaling is due.

Does E515 mean the PCB and gas valve must be replaced?

No. The complete suffix can direct testing toward a narrower circuit, harness, connector, control input, fan-voltage branch, or component. In this case, notes identified a broken harness conductor after major parts were considered. Repair should follow confirmed measurements and correction of the moisture source, then pass model-specific return-to-service testing.

Is Navien error code 515 repair covered by warranty?

Coverage depends on the exact model, application, installation date, registration or documentation, maintenance, and current written terms. Navien decides eligibility. A heat-exchanger warranty term does not automatically cover a harness, PCB, gas valve, diagnosis, labor, access, shipping, or vent correction. The code alone does not establish a claim.
