If your Navien heat pump water hot water tank keeps flashing error codes like 781, 481, or 480 — especially when the unit still seems to be making hot water just fine — the cause may not be a failing part at all. It may be a single communication setting that was never configured correctly during installation.

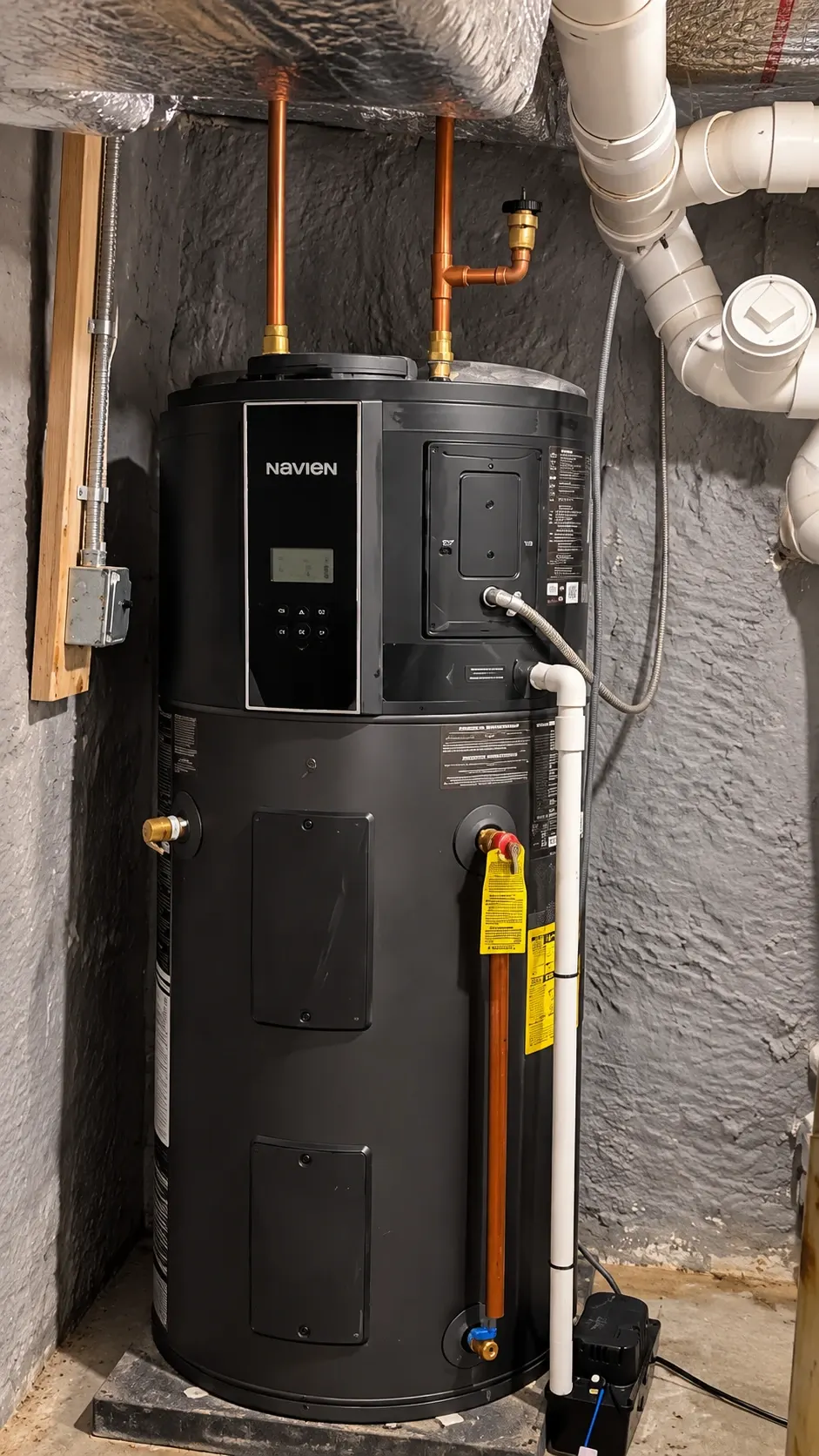

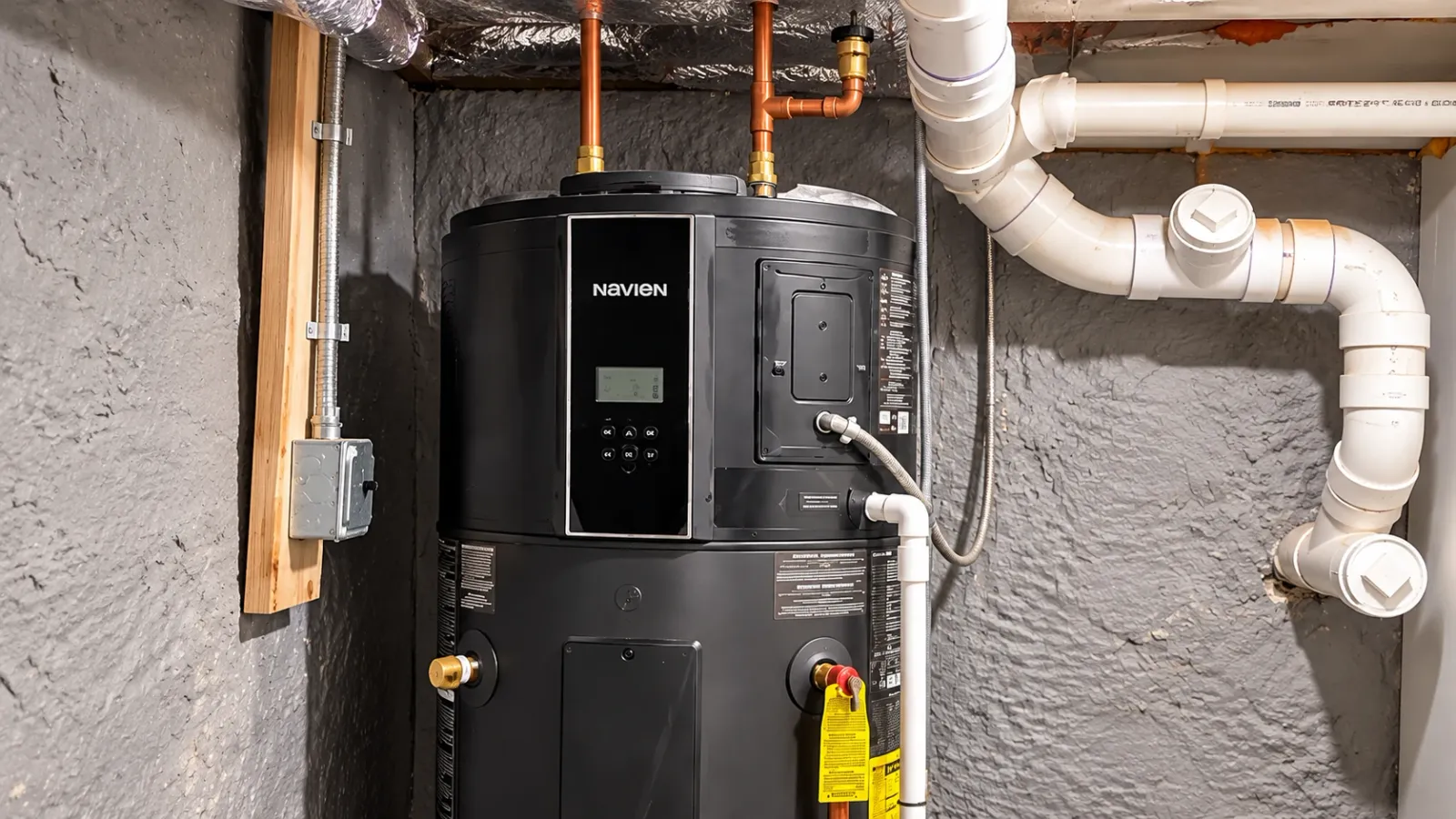

This scenario came up during a recent phone troubleshooting session between a Jeneral Plumbing technician and homeowners who had just bought a house with a Navien heat pump water heater already installed. The unit was less than a year old, but the touch screen display had been acting up and the system had thrown repeated error codes since they moved in.
The Symptoms: Phantom Errors on a Water Heater That Still Works
The homeowners described an intermittent pattern: the unit would lose hot water, then recover, then lose it again. Checking the error history on the display turned up four recurring codes: 781-0, 481-01, 480-01, and then back to 781-0. At the same time, the display showed a prompt to replace the air filter — but when the filter was pulled and inspected, it was clean, with no visible reason for the warning.
This is a frustrating combination for any homeowner: the water hot water tank appears to be functioning (hot water was confirmed coming from an upstairs faucet during the call), yet the control panel keeps generating warnings that suggest something is wrong.
What's Really Happening: EcoPort Enabled Without a CTA Module
During the call, the Jeneral Plumbing technician asked a key diagnostic question: did the unit have a CTA module installed? The homeowners did not believe it did. That detail matters, because a Navien unit will generate this type of error code when the EcoPort function is turned on but no CTA module is present to communicate with. The EcoPort setting is meant to enable Wi-Fi or demand-response functionality, but without the corresponding module, the system has nothing to talk to — and it throws an error as a result.
The technician walked the homeowner through the unit's menu to check this directly: pressing and holding the M button to reach the main menu, entering Settings, scrolling to Communication, and then into the EcoPort option. In this case, the EcoPort setting showed as "off" at the time of the call, though the pattern of recurring errors suggested it had likely been enabled at some point, possibly from the original installation.
While reviewing system status, the technician also checked the unit's temperatures for context: the upper tank was reading 122°F, the lower tank 84°F, with a set temperature of 126°F — all consistent with a unit that was heating and cycling normally rather than failing outright.
Why This Gets Missed
This is the kind of issue that's easy for even experienced technicians to overlook, because the error codes look like they point to a hardware or airflow problem — not a configuration setting buried three menus deep. The air filter warning compounded the confusion, since pulling and inspecting the filter showed nothing wrong with it. In this case, the plan was to reinsert the filter and monitor whether the warning returned once the EcoPort setting was confirmed off. The touch panel itself also has a known quirk worth mentioning: it can be unresponsive to normal taps and may require a firmer or more deliberate press to register input. That's a documented sensitivity issue, not a sign of a separate failure.
What to Watch For and When to Call a Professional
If you own a Navien heat pump water heater and you're seeing similar codes, a few things are worth noting before assuming the unit itself is defective:
Confirm whether a CTA module is actually installed alongside the unit.
Have a licensed technician check whether the EcoPort/communication setting matches what your installed hardware supports.
Don't assume an air filter warning means the filter is dirty — inspect it, and if it's clean, the warning may be tied to the same communication fault.
If hot water loss becomes more frequent or complete rather than intermittent, further diagnostics — including checking voltages at the disconnect switch — may be needed.
Water heater diagnostics involving electrical components and manufacturer-specific settings should be handled by a licensed plumber or qualified technician familiar with the equipment. Incorrect changes to settings or disconnects can create new problems or safety hazards. If your system is throwing recurring error codes, it's worth having it evaluated by a professional rather than resetting errors repeatedly and hoping they stop.
For homeowners dealing with a water heater that isn't behaving the way it should — whether it's a Navien heat pump unit or another system — Jeneral Plumbing's water heating services cover diagnostics, settings verification, and repair. If the issue turns into a total loss of hot water or another urgent situation, our emergency plumbing line is available, and we answer emergency calls 24/7.
FAQ: Does a Dirty Air Filter Warning Always Mean the Filter Needs Replacing?
Not necessarily. In the case described here, the air filter warning kept appearing even though the filter was visibly clean. When a water heater's electronic display shows a filter warning alongside other communication-related error codes, it's worth having a technician check whether the warnings are linked to a settings issue rather than the filter itself before replacing a part that isn't actually worn out.
This post is for informational purposes only and is not a substitute for an in-person evaluation by a licensed plumbing professional. If your water heater is displaying error codes or behaving inconsistently, contact Jeneral Plumbing at (978) 392-7789 to schedule a diagnostic visit.
