Tankless heat exchanger replacement Lowell MA planning should answer more than whether a new part fits. You should know how the failure is confirmed, what comes apart, how the appliance is reassembled, which tests happen before handoff, and what a manufacturer warranty may leave outside coverage.

The available source record says Jeneral Plumbing completed a Navien heat-exchanger replacement for a Lowell homeowner. It also records isolation and draining, internal disassembly, a replacement exchanger, filter and condensate-trap checks, reassembly, and a restart. The record does not preserve the exact model, error code, failure cause, warranty decision, elapsed time, combustion readings, invoice, or long-term outcome.

This tankless heat exchanger replacement Lowell MA guide therefore explains the professional procedure without inventing details from that home. It is an educational look at the work, not a diagnosis or a do-it-yourself repair manual. For broader equipment, sizing, and lifecycle context, use Jeneral Plumbing’s tankless water-heater guide.

Quick Answer: Tankless Heat Exchanger Replacement Lowell MA

A tankless heat exchanger replacement Lowell MA visit is a major internal gas-appliance repair. I confirm the failed component and exact model, isolate and drain the unit, disassemble it in the manufacturer’s order, install the correct exchanger and seals, then complete water, gas, venting, condensate, electrical, safety, and combustion checks. Hot water returning once is not enough to finish the job.

This is professional-only work. Do not remove the cabinet, attach service hoses, touch gas or electrical connections, alter venting, or repeatedly reset a faulting unit. If there is gas odor or a suspected fuel leak, everyone should leave immediately; do not operate lights, switches, phones, appliances, windows, shutoffs, plugs, or flames inside; from outside, call 911 and the gas utility or propane provider; stay out until officials clear the property. Carbon monoxide has no smell, so a sounding CO alarm, possible exposure symptoms, escaping flame, smoke, or fire also means leaving, calling 911 from outside, and staying out until officials clear the property.

What the Heat Exchanger Does

The heat exchanger transfers burner heat into the water moving through a tankless appliance. It sits at the intersection of water flow, combustion, venting, condensate, controls, and temperature protection. That is why a tankless heat exchanger replacement Lowell MA scope cannot be reduced to removing one box and installing another.

Scale, acidic or otherwise unsuitable water conditions, restricted flow, leakage, failed seals, abnormal combustion, venting defects, condensate problems, overheating, freeze damage, or a manufacturing fault can affect an exchanger. Those are diagnostic branches, not a finding from the Lowell source record. A visible deposit, error code, or age estimate does not establish the cause by itself.

Confirm the exact model, serial number, code history, and documented failure
Trace water, combustion, venting, condensate, pressure, and flow conditions that may affect the new part
Inspect adjacent seals, wiring, sensors, fan, burner, ignition components, and connections
Separate a warrantable component failure from connected corrections that remain property-specific

Tankless Heat Exchanger Replacement Lowell MA: The Five-Step Process

The sequence below describes what to expect from a licensed professional. Every Navien model has its own service literature, part configuration, sealing requirements, and commissioning procedure. A tankless heat exchanger replacement Lowell MA project should follow the exact appliance documents rather than a generic online disassembly order.

Step 1: Confirm the Scope and Isolate the Appliance

I begin with the rating plate, serial number, displayed and stored codes, service history, visible conditions, and model-specific test procedure. The failed exchanger, correct replacement part, required seals or gaskets, warranty path, and any connected correction should be defined before internal work starts. Customer approval comes before the repair or manufacturer claim proceeds.

Once the unit is cool, I follow the model procedure to isolate electrical power, fuel, and the hot and cold water connections. I verify the isolation, relieve water pressure, drain the appliance and condensate path as required, and protect the surrounding work area from residual water. These are licensed service steps, not homeowner shutdown instructions.

Good preparation makes tankless heat exchanger replacement Lowell MA work more controlled. It also exposes missing, seized, leaking, or inaccessible valves before the cabinet is fully disassembled.

Why Isolation Valves Matter

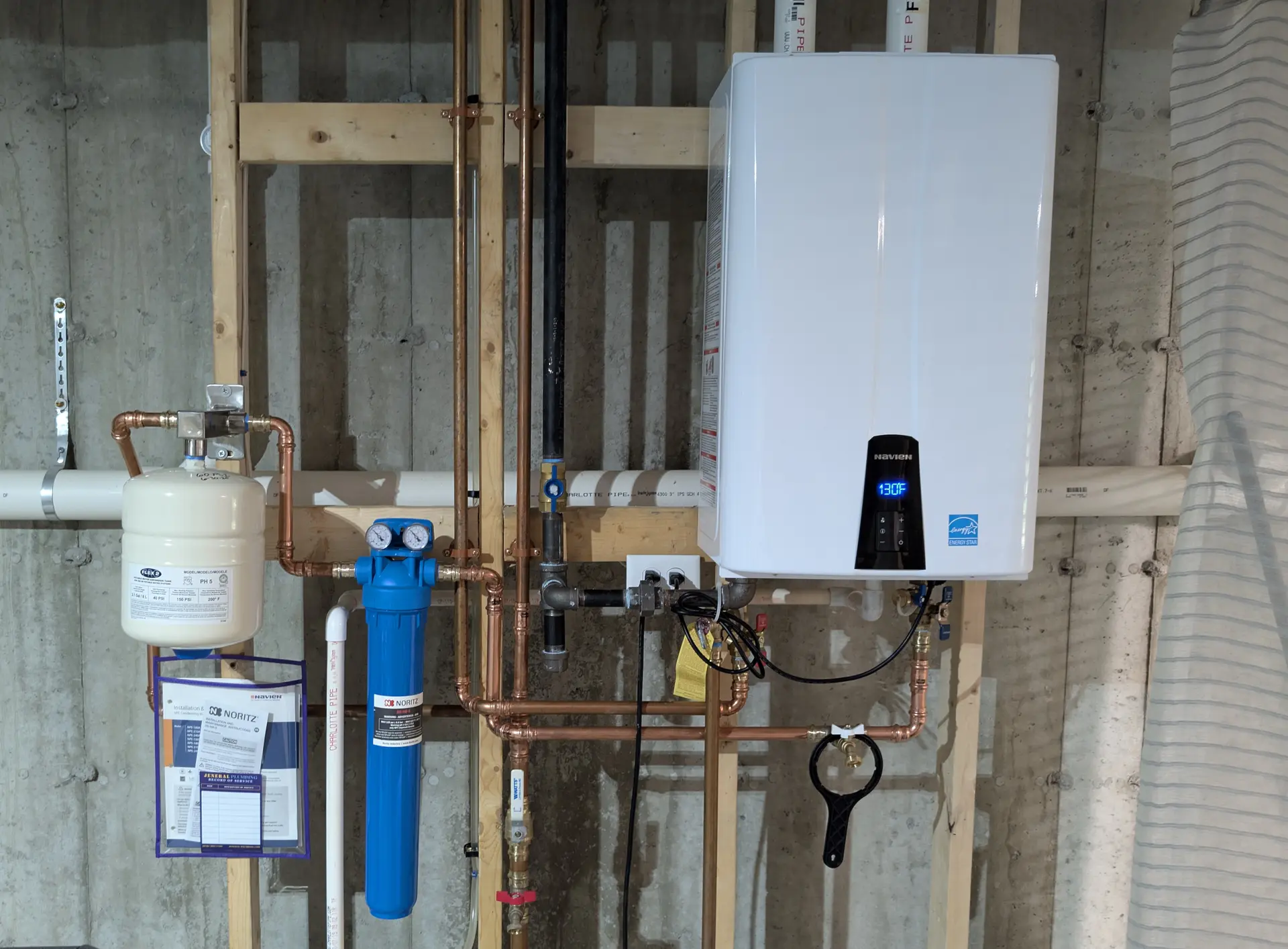

A tankless isolation-valve arrangement normally provides dedicated hot- and cold-water shutoffs plus hose or purge ports. Those ports let me separate the appliance from the house piping, relieve pressure, drain it, and perform a flush without draining the entire domestic-water system. The gas shutoff and electrical disconnect are separate controls.

Isolation valves do not make tankless heat exchanger replacement Lowell MA a homeowner project. They also do not prove that prior maintenance occurred or prevent a component failure. If the valves are absent, damaged, incorrectly arranged, or inaccessible, the work may need a broader building-water shutdown, additional draining, or a compatible valve upgrade.

Step 2: Open the Unit in the Model-Specific Order

Access usually requires removal of several connected assemblies before the exchanger can move. Depending on the exact Navien model, that can include selected gas-train, burner, fan, ignition, wiring, water, sensor, vent-collar, and condensate connections. I photograph and label connections, support removed components, contain residual water, and follow the sequence in the service procedure.

Disassembly creates access to areas that are otherwise difficult to inspect. I check harnesses and connectors, seals and O-rings, the burner and ignition area, fan and air path, water connections, inlet filter, condensate trap and drain, and signs of heat or moisture damage. The Lowell record mentions air-intake-filter cleaning, cold-inlet-filter inspection, and condensate-trap cleaning, but it does not preserve their measured condition.

During tankless heat exchanger replacement Lowell MA work, cleaning is useful only when it matches the conditions found. A cleaned filter cannot correct a failed seal, damaged vent, gas-supply problem, electrical fault, or unsuitable water chemistry.

Step 3: Remove the Exchanger and Inspect the Failure Boundary

I disconnect the model-approved attachments, support the exchanger, and remove it without loading nearby tubing, wiring, or mounting surfaces. Once the component is out, sealing surfaces, brackets, water paths, burner interfaces, vent connections, and the surrounding cabinet can be examined. Required one-time seals, gaskets, and O-rings should be replaced according to the part instructions rather than reused by assumption.

This is also the point to decide whether the scope ends at the exchanger. Scale or water evidence, leakage, abnormal heat, condensate, venting, combustion, pressure, flow, or collateral damage may require a separate correction. Tankless heat exchanger replacement Lowell MA work that hides an unresolved cause behind a new part risks another shutdown.

Step 4: Install the Correct Part and Reassemble

The replacement exchanger must match the verified model and approved part information. I seat it without strain, install the specified new seals, align mounting points, and secure fasteners in the required sequence. Burner, fan, ignition, gas, water, wiring, grounds, sensors, vent collar, and condensate connections then return to their documented positions.

Reassembly is not a race to the power switch. Pinched wiring, a rolled O-ring, a strained water connection, a loose ground, or a misaligned vent collar can create a new fault. A tankless heat exchanger replacement Lowell MA procedure includes a full connection review before water, fuel, and electricity are restored.

Step 5: Fill, Leak-Test, and Commission

I fill and purge the water side before firing the burner, then inspect water and condensate connections under the conditions required by the model. Gas is restored only after the cabinet, gas train, and related connections are complete. Approved gas leak testing follows any work that opened or disturbed the gas path.

The appliance must then pass its operating sequence. I verify ignition and flame proving, intake and exhaust condition, condensate drainage, water flow, outlet temperature, applicable safety controls, and whether any code returns. For tankless heat exchanger replacement Lowell MA work, model-required combustion measurements are part of the return-to-service decision.

Testing That Completes the Repair

A burner that lights and a faucet that gets warm do not prove that the appliance is ready for normal use. Commissioning checks the repaired component inside the complete fuel, air, exhaust, water, condensate, electrical, and control system. The exact Navien model and fuel procedure set the test points and acceptable results.

Water, Gas, Vent, and Condensate Checks

Inspect water-side joints and seals after filling, purging, and operating
Complete the prescribed gas leak test after disturbed gas-train work
Verify intake and exhaust material, joints, support, route, termination, and visible condition within the agreed scope
Confirm the condensate trap, drain, and neutralization arrangement operate as applicable
Check wiring, grounds, connectors, cabinet fit, and safety-control response

Combustion and Operating Checks

I use calibrated instruments and the manufacturer procedure to compare combustion results at the applicable firing conditions. That may include prescribed gas-pressure checks, oxygen or carbon-dioxide readings, carbon monoxide, flame-proving evidence, temperature, flow, and other model-specific values. There is no safe universal number to publish across every Navien model, fuel, elevation, vent design, and firing rate.

Tankless heat exchanger replacement Lowell MA commissioning should also verify hot-water operation under credible demand, stable outlet temperature, safety response, and the absence of recurring codes or leaks. Findings, settings, photographs, warranty documents, and the homeowner handoff should be recorded. If a required result does not pass, the unit stays out of normal service until the cause is corrected.

How Long the Repair Takes

With the correct part on site, usable isolation valves, normal access, and no added damage, tankless heat exchanger replacement Lowell MA component work plus commissioning often takes roughly 4–8 on-site hours. That is a planning range, not a promise. The final time depends on the exact model, cabinet access, corrosion, fasteners, residual water, adjacent damage, and whether every return-to-service check passes.

Tankless heat exchanger replacement Lowell MA scheduling must keep diagnosis, manufacturer review, warranty approval, part delivery, and appointment timing outside the on-site repair range. Missing valves, vent or condensate corrections, damaged wiring or burner parts, a gas-piping issue, or a failed combustion check can extend the visit or require a return. I confirm the expected scope after the appliance and correct part information are available.

Navien Warranty: Exchanger Parts and Labor Are Separate

Tankless heat exchanger replacement Lowell MA warranty review begins with the exact model and application. Navien’s current residential heat-exchanger coverage runs 15 years for qualifying residential models and applications. Eligibility depends on the recirculation configuration, serial number, installation date, registration or proof, installation, maintenance, water conditions, current written terms, and Navien’s decision. The Lowell source does not document that this repair was approved as a warranty claim.

A 15-year heat-exchanger term is not a 15-year whole-unit or labor promise. Standard manufacturer coverage does not automatically pay diagnosis or installation labor. Any applicable manufacturer labor allowance, separately purchased extended coverage, or written installer labor coverage follows its own terms, duration, and approvals. Tankless heat exchanger replacement Lowell MA proposals should distinguish each category in writing:

Heat-exchanger part: may be supplied under an approved claim when the exact terms are satisfied
Other parts: seals, wiring, sensors, burner or fan components, and adjacent items follow their own terms
Labor and diagnosis: do not inherit the 15-year exchanger term; any applicable allowance or extended coverage follows separate written terms and approval
Connected work: access, shipping, venting, gas, water, condensate, treatment, permits, and corrections are not automatically included with a covered exchanger

For tankless heat exchanger replacement Lowell MA claims, Jeneral Plumbing can document findings, prepare the proposed scope, and coordinate with Navien, but Navien decides eligibility. Jeneral Plumbing is owner-operated by a Licensed Master Plumber (MA #9628831-PL-M) with 20+ years in the trade, including 7 years with a gas utility. I am factory trained by Navien and Navien Service Specialist (NSS) certified; those credentials support model-specific service but do not decide warranty eligibility.

Repair or Replace the Whole Tankless Unit

A tankless heat exchanger replacement Lowell MA decision should compare more than equipment age. Repair can make sense when the failure is confirmed and isolated, the correct part is available, root conditions can be corrected, the surrounding appliance remains serviceable, and commissioning can pass. Replacement deserves discussion when damage is broad, major faults repeat, critical parts are unavailable, or required venting, gas, water, condensate, and control corrections make the repair poor value.

Confirmed exchanger and adjacent-component condition
Exact warranty eligibility and parts availability
Failure, maintenance, and repair history
Water, flow, venting, combustion, gas, condensate, and electrical corrections
Current hot-water demand and whether the existing model still fits it
Flat-rate repair scope compared with a complete replacement scope

A complete condensing tankless installation costs $8,500 – $11,000+. That is replacement context, not a heat-exchanger labor quote, and the Lowell source contains no repair invoice. The broader water-heater repair-or-replacement guide explains the decision inputs across equipment types.

Repair and installation work is priced at a flat rate, with the total price and any applicable fees disclosed for approval before work begins.

Maintenance After the Repair

Descaling addresses mineral accumulation inside the water passages. It does not repair a leaking seal, acidic-water corrosion, vent defect, gas or combustion problem, damaged wiring, condensate fault, or failed sensor. A tankless heat exchanger replacement Lowell MA close should keep those maintenance and failure branches separate.

After tankless heat exchanger replacement Lowell MA work, annual service is a practical review point for many tankless units, but it is not a universal descaling mandate. The exact model instructions, usage, recirculation, service history, a property-specific water test, and the scale observed during service determine whether descaling is due. A sediment or inlet filter does not remove dissolved hardness. Treatment follows test results, and no town name establishes the water conditions at a specific faucet.

Tankless Annual Service is listed as an add-on to service-plan options, so the scope and interval must be confirmed for the installed unit. Maintenance cannot guarantee that a component will not fail. Regular-hours visits carry an $80 dispatch fee — the cost of the visit, waived when you hire us for the work.

Tankless heat exchanger replacement Lowell MA questions extend beyond the procedure. The Navien Error 110 guide explains the separate air-pressure and venting diagnosis; the Bedford flame-rollout case shows why root-cause and vent verification matter before repair; the Tyngsborough replacement case provides a more detailed documented repair narrative; and the Westford warranty-claim case follows the manufacturer-documentation path.

Key Takeaways

Tankless heat exchanger replacement Lowell MA work is complete only after the part, connected conditions, and recorded return-to-service results support normal operation.

Confirm the exact model, failed component, root condition, part, and written scope before disassembly
Isolation valves reduce disruption but do not make a sealed gas-appliance repair safe for homeowners
Replace required seals and inspect adjacent damage before the new exchanger hides the mounting area
Fill, purge, leak-test, verify safeties, and complete model-specific combustion testing before handoff
Treat 4–8 on-site hours as a conditional planning range, separate from claims, parts, and scheduling
Separate heat-exchanger coverage from other parts, labor, access, and connected corrections
Set descaling from the exact manual, tested water, use, recirculation, service history, and observed scale

Frequently Asked Questions

How long does tankless heat exchanger replacement Lowell MA service take?

Once the correct part is on site, a prediagnosed repair with usable isolation valves, normal access, and no added damage often takes about 4–8 on-site hours including commissioning. That range is for planning and is not a completion promise. Corrosion, missing valves, damaged connected parts, vent or condensate corrections, and a failed test can extend the work or require another visit. Warranty review, part delivery, and scheduling are separate from on-site repair time.

What should the five-step replacement process include?

A licensed professional’s five-step process should include confirmed scope and controlled isolation, model-specific disassembly, removal and adjacent-condition inspection, correct-part installation and reassembly, then filling, leak testing, and commissioning. Tankless heat exchanger replacement Lowell MA work should also address a confirmed root condition rather than conceal it. The gas, water, vent, condensate, electrical, ignition, safety, flow, temperature, and combustion checks follow the exact model procedure. A single successful firing cycle is not the whole return-to-service test. This is not a homeowner procedure.

Does Navien’s warranty cover the exchanger and labor?

Navien’s residential heat-exchanger coverage runs 15 years for qualifying residential models and applications, but the exact current written terms control. The exchanger part, other parts, and labor carry separate terms, and standard manufacturer coverage does not automatically pay diagnosis or installation labor. Tankless heat exchanger replacement Lowell MA labor, access, shipping, seals, connected corrections, and return visits do not inherit the exchanger term. A Lowell address or hard-water label does not decide a claim; measured conditions and scale, installation and maintenance records, the failure cause, written exclusions, and Navien’s review control eligibility. Navien decides the claim.

Are isolation valves required for the repair?

Usable hot- and cold-water isolation valves with service ports let a professional separate, drain, and flush the appliance with less disruption to the house. They do not isolate fuel or electricity, and they do not make tankless heat exchanger replacement Lowell MA safe for do-it-yourself work. If valves are missing, seized, leaking, incompatible, or inaccessible, broader shutdown and piping work may be needed. I confirm that added scope before relying on the usual time range.

Is replacing the exchanger worth it?

It can be when the failure is isolated, the surrounding unit remains sound, the part is available or covered, and the root condition can be corrected. Tankless heat exchanger replacement Lowell MA may be poor value when damage extends into other major components or when gas, vent, condensate, water, and control corrections make the full scope approach replacement. Age alone and an error code do not decide. Compare the confirmed flat-rate repair with a property-specific replacement proposal and required commissioning.

How often should a Navien tankless water heater be descaled?

Use the exact installed-model instructions, usage and recirculation pattern, tested water conditions, service history, and the scale found during service. Annual service is a practical review point, not proof that every home needs the same flush interval. Descaling can address mineral scale in the water passages, but it cannot prevent or repair every cause that leads to tankless heat exchanger replacement Lowell MA work. Treatment should follow measured results rather than a Lowell-wide hardness assumption.

Plan Lowell Tankless Service

For tankless heat exchanger replacement Lowell MA service, Jeneral Plumbing works from Westford, MA and serves Lowell, Chelmsford, Billerica, Tewksbury, Littleton, and Groton within its 23-town Middlesex & Essex County core. I confirm whether the appliance, documented failure, warranty path, and connected conditions fit this repair scope before setting expectations for time or return to service.

For regular-hours tankless heat exchanger replacement Lowell MA planning, call (978) 392-7789 to confirm whether the appliance and repair fit this scope.
